Docx

APTRS provides the ability to generate detailed DOCX reports using customizable templates. You can use Jinja2 template tags within your .docx templates to dynamically populate project and vulnerability data. This guide explains how to customize your template and use available context variables.

Template Location

The default template is located at: /APTRS/templates/report.docx

You can replace this file with your custom .docx template while keeping the required placeholders intact.

Using Template Tags

The .docx template uses Jinja2 syntax for placeholders and loops. Below are some examples:

Placeholders

  • Syntax: {{ variable_name }}
  • Example: To display the project name, use: {{ project.name }}

Loops

  • Syntax: {% for item in items %}...{% endfor %}
  • Example: To list all vulnerabilities:
Python
{% for vulnerability in vulnerabilities %}

{{ vulnerability.vulnerabilityname }} (CVSS: {{ vulnerability.cvssscore }}) {% endfor %}

Conditional Statements

  • Syntax: {% if condition %}...{% else %}...{% endif %}
  • Example: To check if a project has vulnerabilities:
Python
{% if vulnerabilities %}
Vulnerabilities are present.
{% else %}
No vulnerabilities found.
{% endif %}

Available Context Variables

Variable Description
project The project object for which the report is being generated. Contains all project details.
owners User details of All Project Owners
project_exception Project Exceptions
project_description Project Description
vulnerabilities Queryset of vulnerabilities for the project, ordered by CVSS score (higher to lower).
mycomany The name of the internal (your company) company.
projectmanagers Queryset of users in the "Project Manager" group.
customeruser Queryset of customer users associated with the project's customer company.
projectscope Queryset of all project scopes for the project.
totalretest List of retest schedules and owners.
totalvulnerability Total count of vulnerabilities for the project.
Report_type The type of report being generated (e.g., Audit, Re-Audit).
standard The standard or methodology being used for the report.
currentdate Get Current Date if needed in the report
page_break Allows you to add page break in the docx report such as page break after each vulnerability details
new_line Allows you to add a new line if needed

Docx Formatting with Jinja2

By default, Jinja2 adds blank lines with conditions or loops, which can be problematic for Docx formatting. Unlike HTML, where empty lines have minimal impact, in Docx, this can lead to extra rows in tables or increased table width.

APTRS uses the docxtpl library, based on Python-docx and Jinja2, for template-based rendering. To reduce blank lines, you can use Jinja2's whitespace control.

However, this method doesn't always work flawlessly; it may inadvertently remove important elements like tables along with extra spaces. A simpler solution can involve using a single line of code.

You can modify the code like this:

Python
##Instead of new line for code
{% if vulnerabilities %}
Vulnerabilities are present.
{% else %}
No vulnerabilities found.
{% endif %}


## you can change it to like this on a single line

{% if vulnerabilities %} Vulnerabilities are present. {% else %} No vulnerabilities found. {% endif %}

Color and Conditions

Each severity level in the report is represented by different colors: low or informational is often green or light blue, while high severity is red. Status can also be color-coded, with fixed vulnerabilities in green and open ones in red or orange.

In HTML reports, you can add severity values to the tag's class attribute and create CSS to apply the colors.

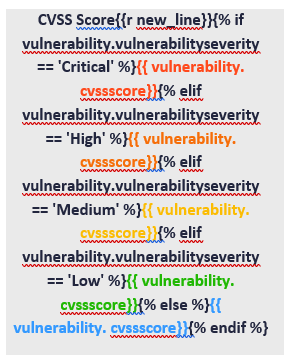

For DOCX reports, colors cannot be applied to undefined elements, limiting customization. To assign colors based on severity—like red for critical and orange for high—include them directly in the conditional statements within your DOCX template.

Python
{% if severity == 'Critical' %} severity with red color. {% elif severity == 'Low' %} severity with green color. {% endif %}

Docx Color

Note

Adding Jinja2 White Space control to this will remove the color.

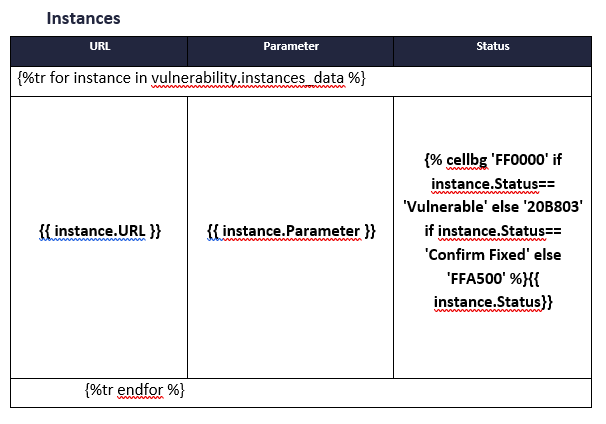

What if instead of just color for the text, we want to add color for the cell in the table like below

Name Status Severity
SQL Injection Vulnerable Confirm Fixed

We can do that as well with cellbg in the table, with hex color code like below:

Python
{% cellbg 'FF491C' if vulnerability.vulnerabilityseverity== 'Critical' else 'F66E09' if vulnerability.vulnerabilityseverity== 'High' else 'FBBC02' if vulnerability.vulnerabilityseverity== 'Medium' else '20B803' if vulnerability.vulnerabilityseverity== 'Low' else '3399FF' %}{{ vulnerability.vulnerabilityseverity}}

Docx Color
